Façade Studies

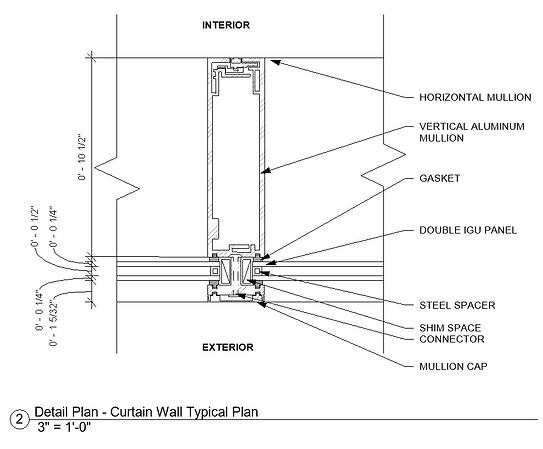

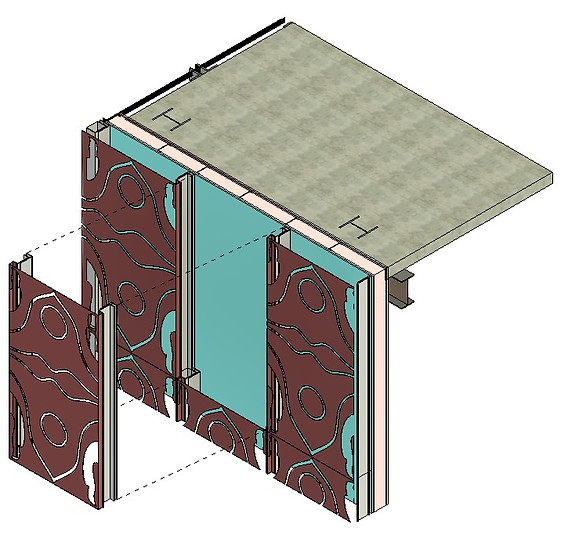

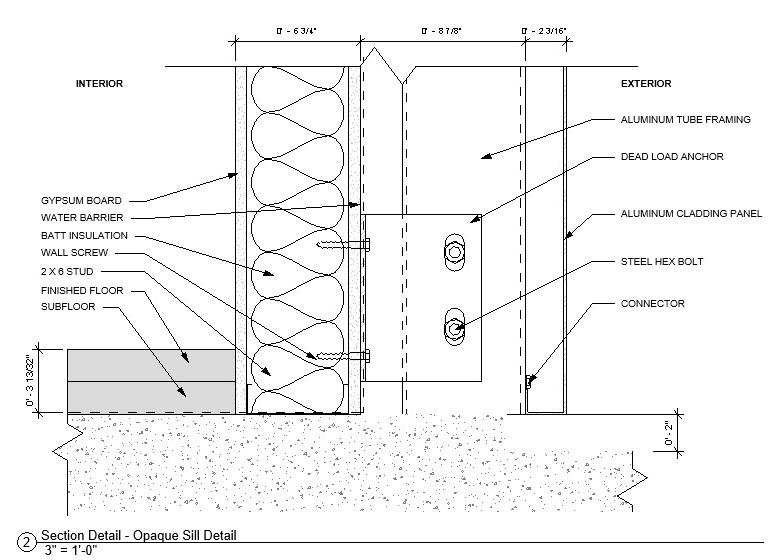

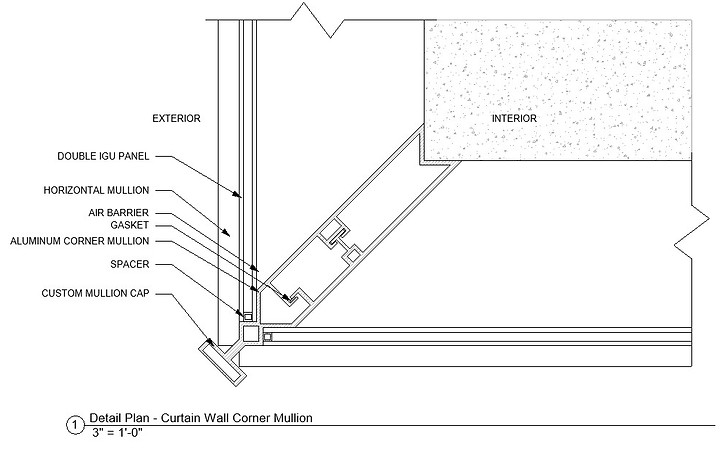

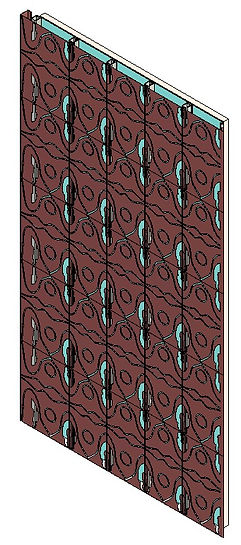

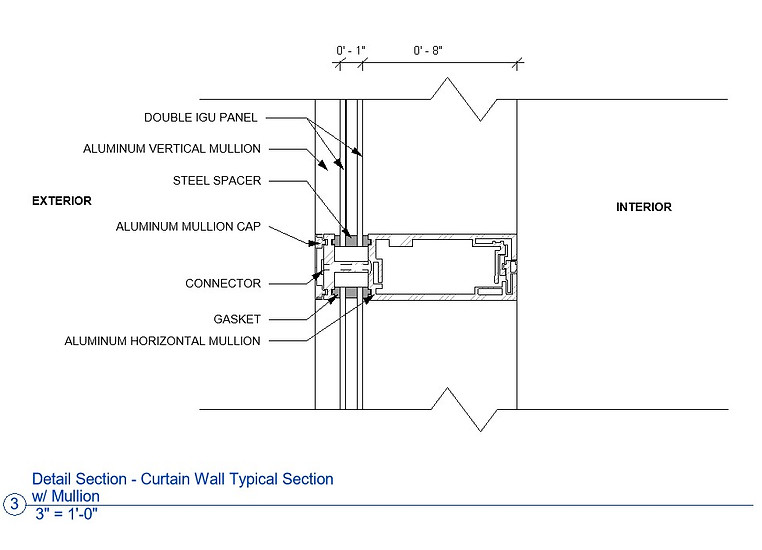

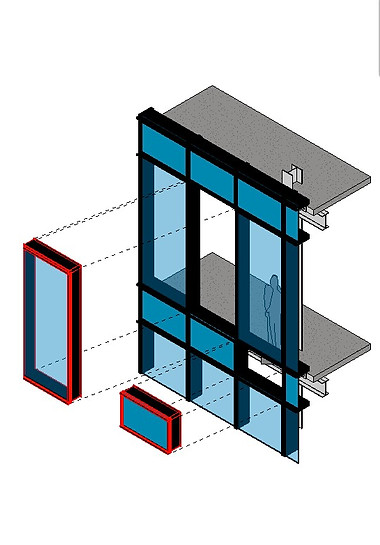

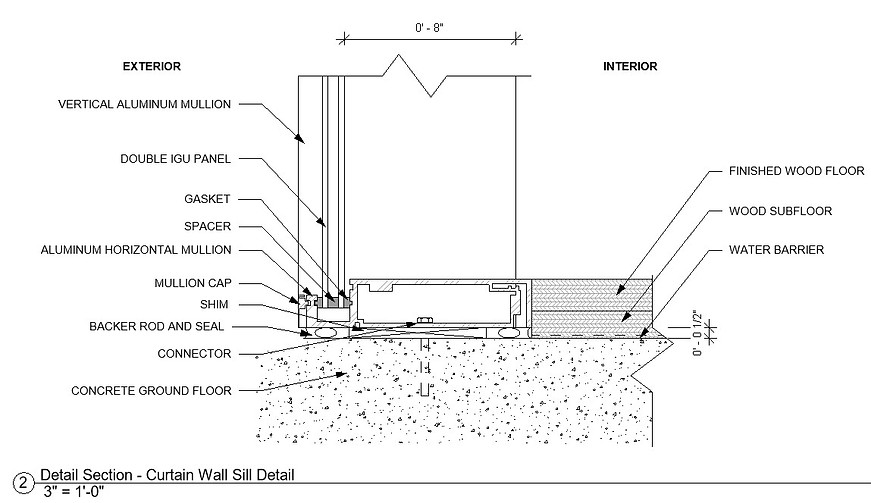

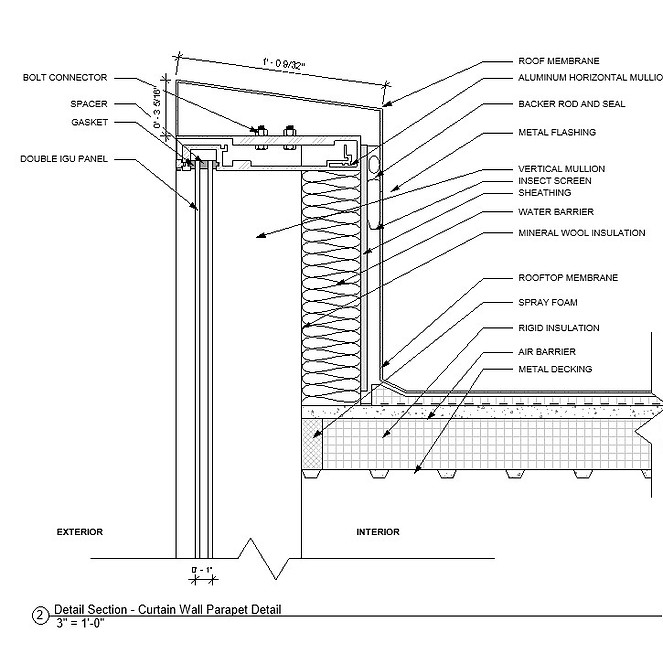

This project reflects the understanding of  the elements behind façade systems through research. How façade systems function structurally, order of installation and thermal/waterproofing strategies. Two systems was researched, one system is a curtain wall system and the other system is an opaque perforated cladding system. Detailed drawings and supplemental drawings are shown to explain how these façade systems work and how they function.
